STT250 Smart Temperature Transmitter |
 |
| Four common models of temperature transmitters
are available for application. |
| |
STT25M 4-20mA Output, SFC/SCT Configurable
STT25H HART Protocol, 4-20mA Output
STT25D Digital DE/4-20mA Output, for Digital Integration
STT25T Dual Input, HART Protocol, 4-20mA Output
|
| |
|
|
| |
Honeywell’s STT 3000 family of microprocessor-based
smart temperature transmitters includes the STT250 and
the STT350 offering high performance and advanced functionality.
The STT250 units offer competitive performance in a more
compact module and with a wider range of smart communications
protocols.

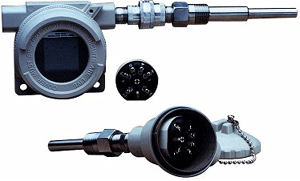

STT250 can be supplied complete with thermocouple or RTD
sensors and with any of a wide range of thermowells. The
sensors are of Mineral Insulated (MI) construction with
lengths of up to two meters available. For the direct
head mount installation the sensor is supplied with a
mounting plate for STT250 module attachment and fixing
screws to provide the spring loaded attachment to the
housing. For EEx d IIC T6 applications a flame trap is
included between the sensor and sensor entry of the housing.
|
|
| |
| |
 |
|
|
